    Spheroidally Shaped Cast Tungsten Carbide Materials For Hard Facing Products

    Ask Lasest Price
    Brand Name : BODA
    Model Number : Spherical Cast Tungsten Carbide BD20401
    Certification : ISO9001:2015
    Price : $58-62/Kgs
    Payment Terms : Negotiable
    Supply Ability : 10 tons/month
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    Spheroidally Shaped Cast Tungsten Carbide Materials For Hard Facing Products

    Spherical Cast, Two-Phase Tungsten Carbide Blend Materials For Hard Face Applications(CTC-S)


    Chemicals compositons:

    GradeWT.CF.CFeTiMO+CO+NiCrViSI
    BD20401Balance3.8-4.2≤0.08≤0.5<0.1<0.2<0.1<0.05<0.02

    Micro-hardness HV 0.1Apparent Density g/cm3Melting Point
    >2500>9.02525

    Product Introduction:

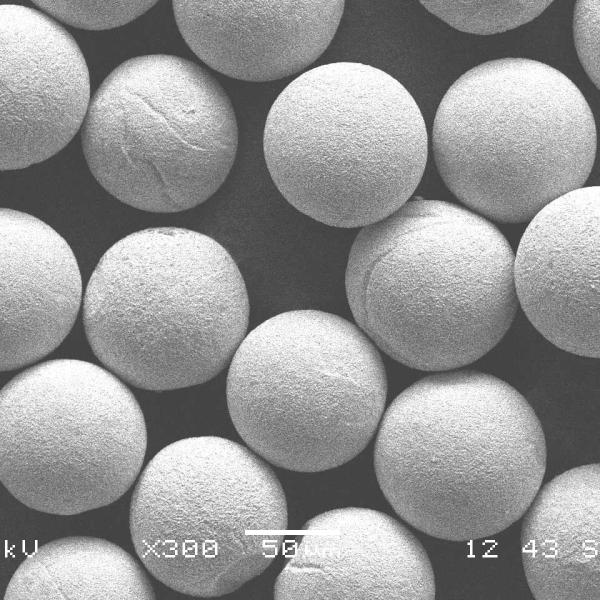

    Spherical Fused Tungsten Carbides (CTC-S) are spheroidally shaped,

    two-phase tungsten carbide powders produced by a special melting process.

    This makes them the most wear resistant fused tungsten carbide products available on the market.


    CTC-S materials are designed to be the hard phase constituent of a wear-resistant surface.

    Depending on the surfacing process, they can be blended with self-fluxing alloys or used a filler material for rods, wires, electrodes or infiltration applications.

    Overlays containing these materials offer excellent abrasive wear resistance in harsh environments, combined with good impact resistance.


    CTC-S offers the best compromise of excellent hardness versus good ductility.

    There is a very broad portfolio of applications for these products with different wear conditions.



    Harding facing materials(Tungsten Carbide Series)
    ProductBoda CodeRegular Particle SizeMain PerformanceSpray ProcessApplicaitons
    Cast Tungsten CarbideCTC/Cast WC60-80Mesh

    high hardness

    high wear resistance.

    Laser cladding,

    Arc Welding,

    PTA,

    Spray and fuse powder welding

    PDC bit, oil drill pipe, TC bearing, etc
    80-100meshTool surface reinforcement
    100-140meshIt is especially suitable for surfacing of petroleum and natural gas geological tools
    10-2700meshMetallurgy, construction, grain and oil processing, mining machinery and other industries
    200-400mesh
    Spherical Cast Tungsten CarbideSCWC/CTC-S100-200meshhigh hardness and high wear resistance.

    Laser cladding,

    Arc Welding,

    PTA,

    Spray and fuse powder welding

    PDC bit, oil drill pipe, TC bearing, etc
    100-270Tool surface reinforcement
    60-140meshIt is especially suitable for surfacing of petroleum and natural gas geological tools
    100-270meshMetallurgy, construction, grain and oil processing, mining machinery and other industries
    Macro Tungsten CarbideMacro WC,MWC60-80meshHard phase blend component for wear resistance

    Laser cladding,

    Arc

    Welding,

    PTA,

    Spray and fuse powder welding

    used as the materials of petroleum
    80-200meshgeological drilling tire body
    2000-400mesha new type of cemented carbide material.
    -325meshMining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws.
    Crystalline Tunsten CarbideCTP60-325Meshstrength and wear resistanceVibration and liquid Metal Infitrationpetroleum drilling diamond bits
    100-200meshas the raw materials of oil perforation pills,high temperature combustion chamber spraying coating
    140-325meshwear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components.
    Chromium CarbideCr3C2140-325meshHigh temperature wear,oxidation and corrosion resistanceAtmospheric plasma spray/combustion powder thermosprayPiston rings,high friction coatings,hot forming dies,machine parts,hydraulic valves,wear protection on aluminum parts
    325-5umFor long-term protection of steel structure, first choice for all kinds of anti-corrosion engineering coating materials .


    Our Facotry :

    Advantages:

    1.100% factory manufacturing and factory direct sales.

    2. Competitive price and quality guarantee.

    3.Trial order and customized testing sample are welcomed.

    4.Independent research and development ability and high efficient production capacity.

    5.We have more than 10 years of experience in producing Thermal spray powder,tungsten carbide materials,PTA,Metal Caride.

    6.We have through the ISO9001 quality management system certification.

    7.We have a professional team and engineer, can solve all the problems you meet
